Features

• Most affordable 2D verifier on the market

• PC Based Verification Solution

• Symbologies Supported – QR Code and Data Matrix (ECC-200)

• Partial ISO/IEC Grading (ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15426-2, ISO/IEC 18004)

• Calibrated to GS1 Data Matrix Calibrated Conformance Standard Test Card (NIST Traceable)

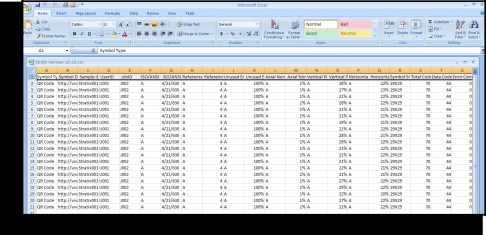

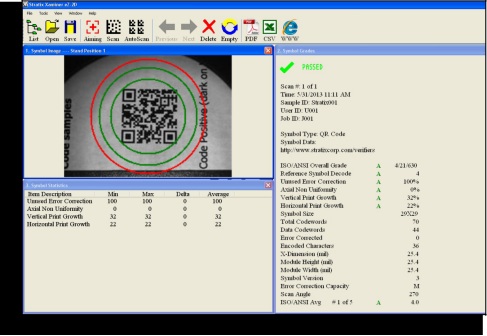

Software Screen Shot:

Field of View

• Stand Position 1

- FOV Size (inch) 1.10” x 1.10”

- Max Code Size (inch) 1.00” x 1.00”

- Minimum X Dimension 10 mils

• Stand Position 2

- FOV Size (inch) 1.30” x 1.30”

- Max Code size (inch) 1.20” x 1.20”

- Minimum X Dimension 15 mils

Physical Characteristics:

• Stand Dimensions (with scanner in stand): Height: 11.05 inches

Width (max): 7.90 inches

Depth: 8.25 inches

Total Weight (stand + scanner) is 4.0 lbs

• System Requirements:

- Windows® XP SP3 (32 bit), Windows 7 (32 bit/64 bit), Intel® Core™2 Duo Processor, 2GB of RAM, USB port 2.0, Microsfot.NET Framework 3.5 SP1, Microsoft Office Excel, Microsoft internet Explorer, Adobe Reader X

Imager Specifications:

• Imaging Characteristics:

- 1.3 Megapixel imager (1280 x 1024)

- Light Source: Aiming - 650 nm laser diode, Illumination – 630 nm LED

• Regulatory Specifications:

- Electrical Safety: UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

- Laser Safety: EN 60825-1, IEC 60825-1, 21CFR1040.10

- EMI/RFI: IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B Environmental: RoHS Directive 2002/95/EEC

• User Environment:

- Operating temperature: 32° to 122° F/ 0° to 50° C

- Storage temperature: -40° to 158° F/40° to 70° C

- Drop specifications: Withstands multiple 6 ft. (1.8m) drops to concrete Enviromental sealing: IP41

• Warranty:

5 years (60 months) from the date of shipment

Xaminer eZ-2D Verifier Package Includes:

Carry Case, Imager & USB interface cable, Stand, Verifier Software CD, Scanner Driver CD, Verifier Calibration Files CD, Installation Guide, Product Reference Guide, 2D Calibration Check Card & Certificate of Calibration
